AG6103 SU
от 100 000 €

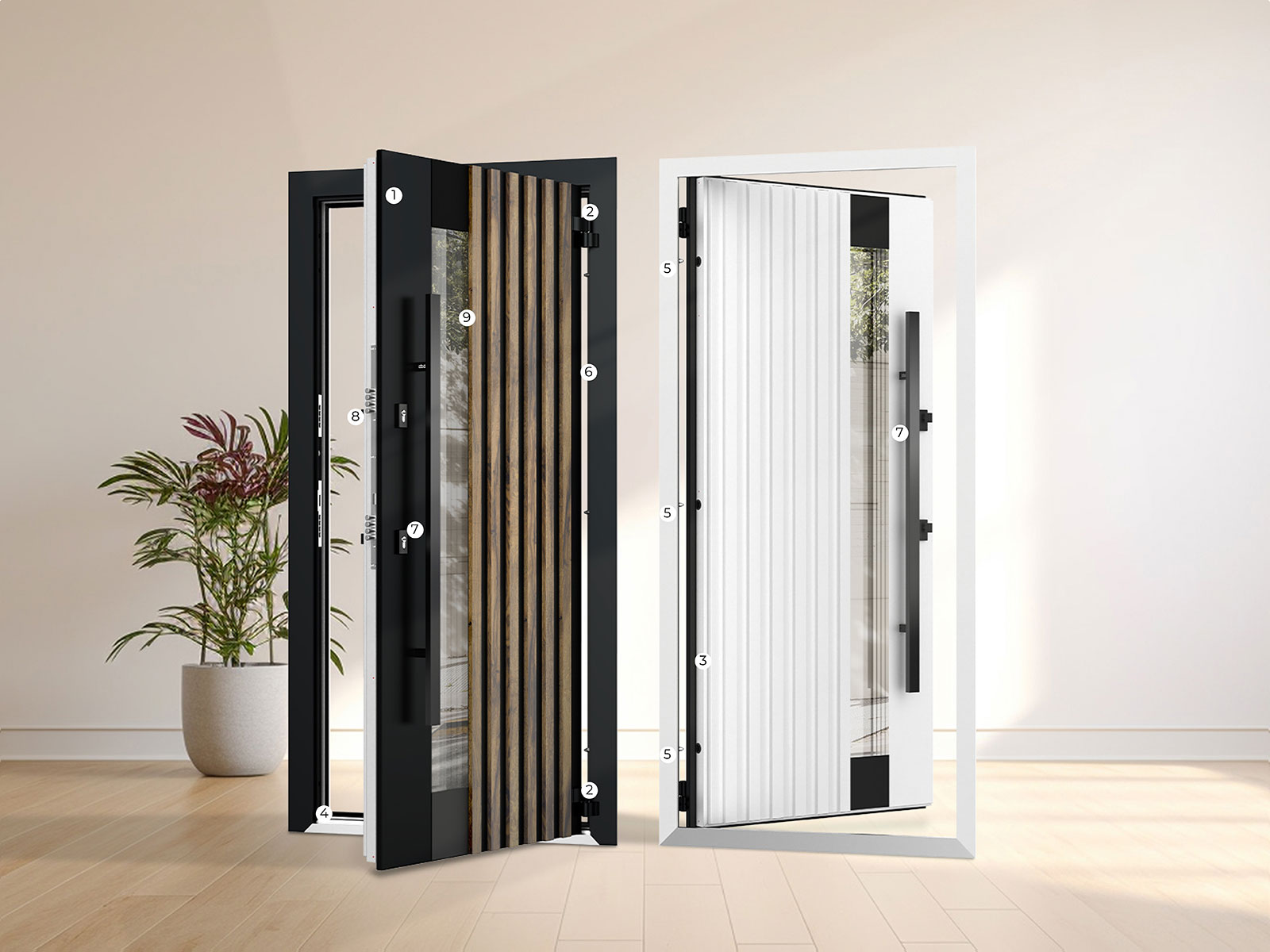

Construction: door frame made of anodized aluminum and door leaf made of 2 sheets of galvanized steel on both sides with thermal break
Number of contours/Sealing: 3 contours, 2 contours of tight sealing
Thermal break: a door case (polyamide insert, 36 mm), a door leaf (thermal insulation tape)
Case/leaf thickness: 97 mm/97 mm
Outer finish: galvanized steel (painting may be chosen), decorative aluminium bars Decolux (colour may be chosen), decorative insert (black Lacobel glass)
Inner finish: galvanized steel (painting may be chosen), decorative insert (black Lacobel glass)
Painting: weather-proof powder paint (colour may be chosen); door frame and leaf painting in two colours is available
Filling: foamed polystyrene
Lock system: according to the scope of delivery (as chosen)
Fittings: according to the scope of delivery (as chosen)

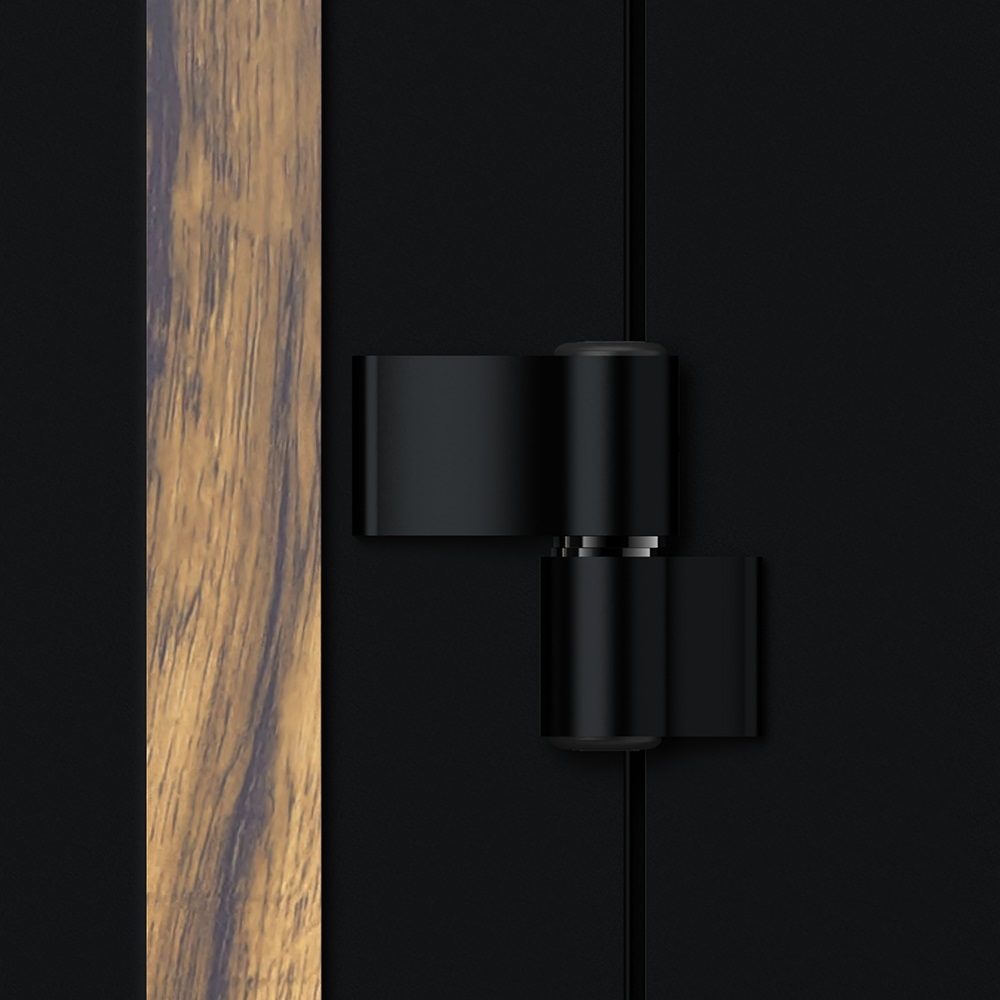

Hinges: two-section surface-mounted hinges (3D adjustment is available in all directions)
Anti-theft bolts: 3 pcs. (d=16 mm)
Rabbet ledge controller: available

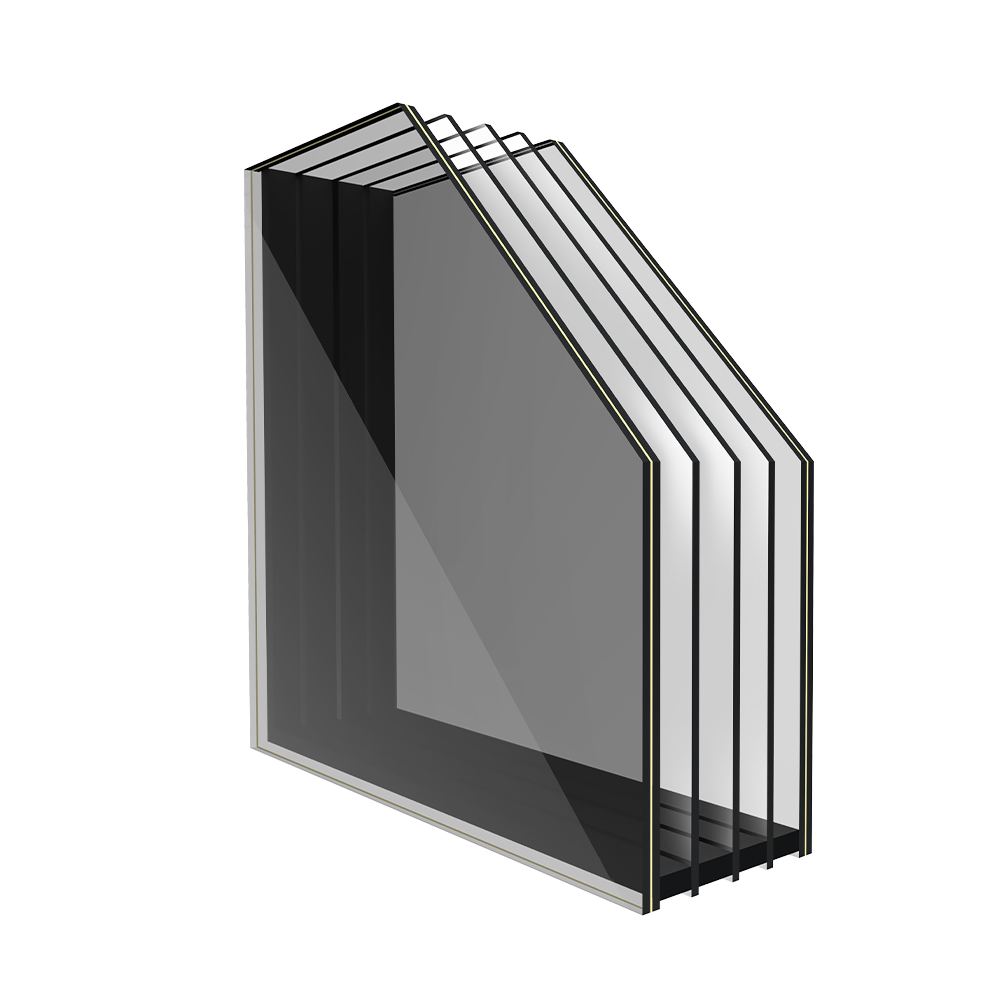

Glass unit: quadruple glazing triplex (colour: graphite/bronze)
The material for the future
Aluminium opens new opportunities in design, appropriate for work with non-standard door openings, corrosion- and weather-resistant.
The material for the future
Aluminium opens new opportunities in design, appropriate for work with non-standard door openings, corrosion- and weather-resistant.

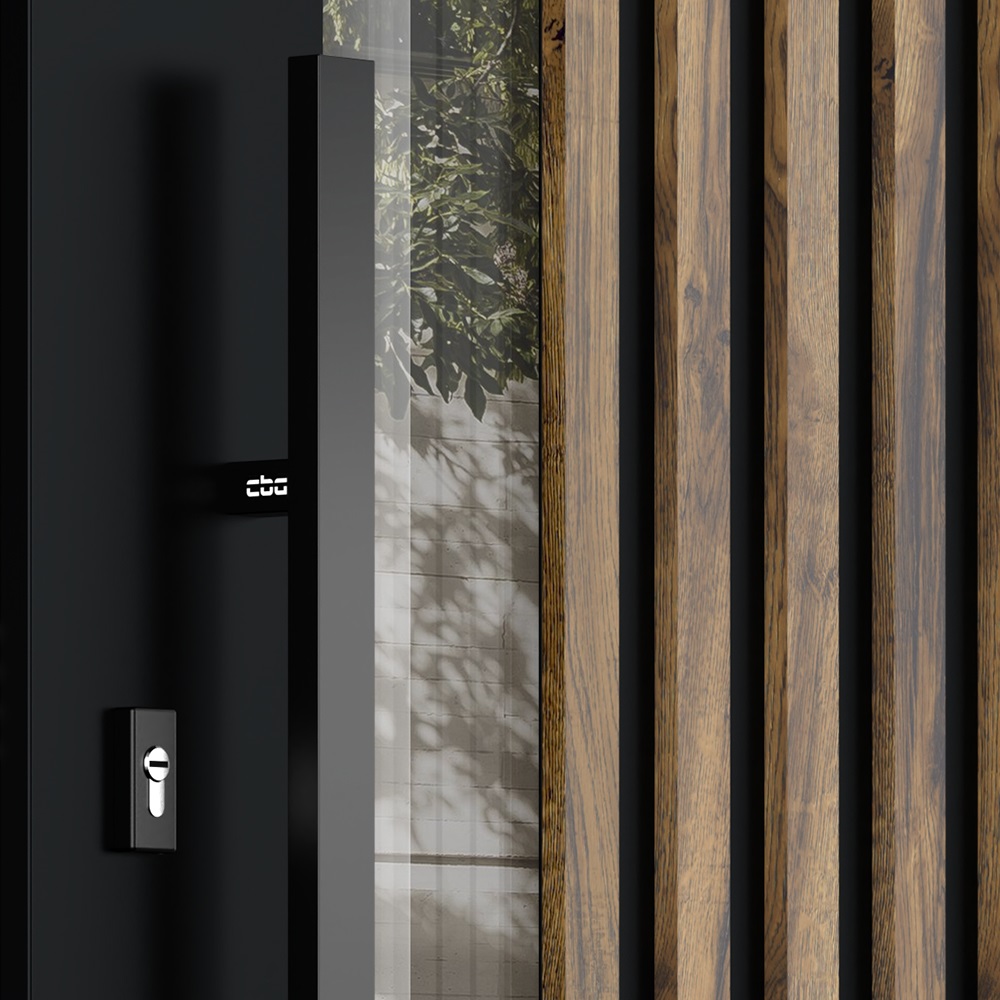

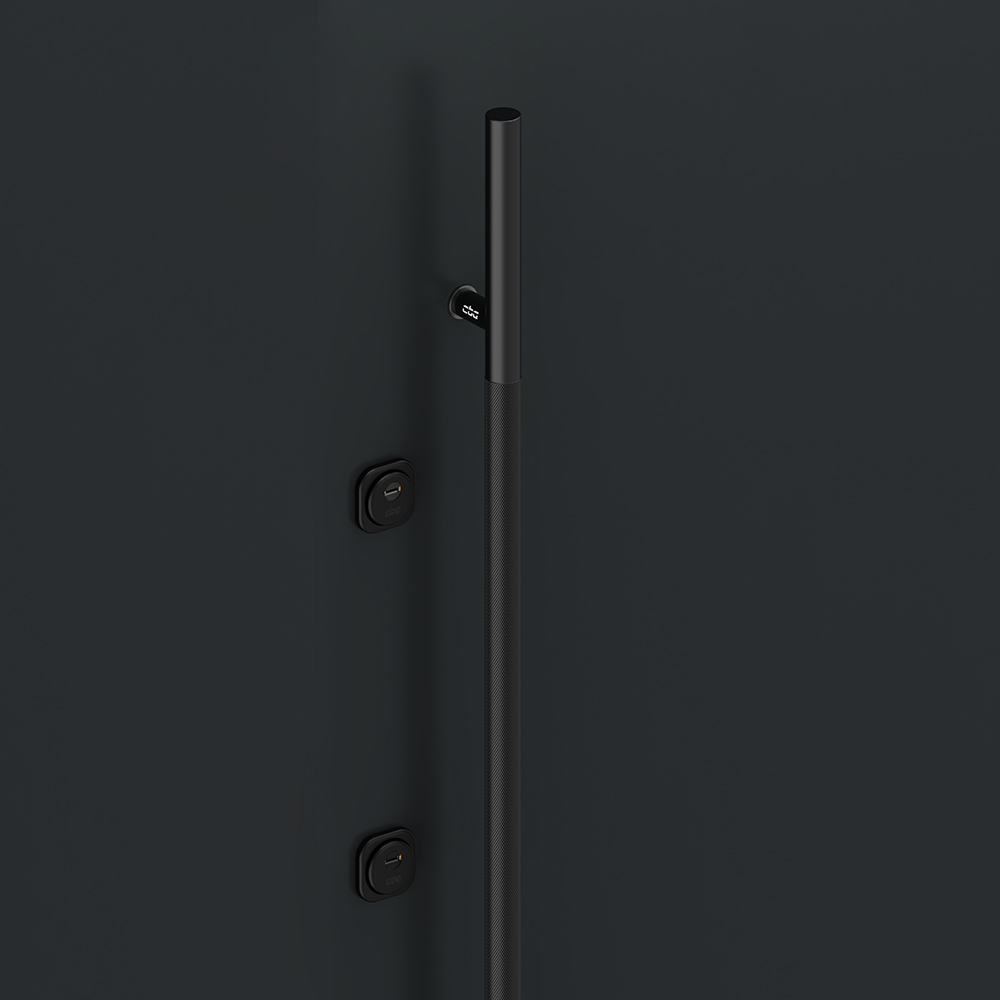

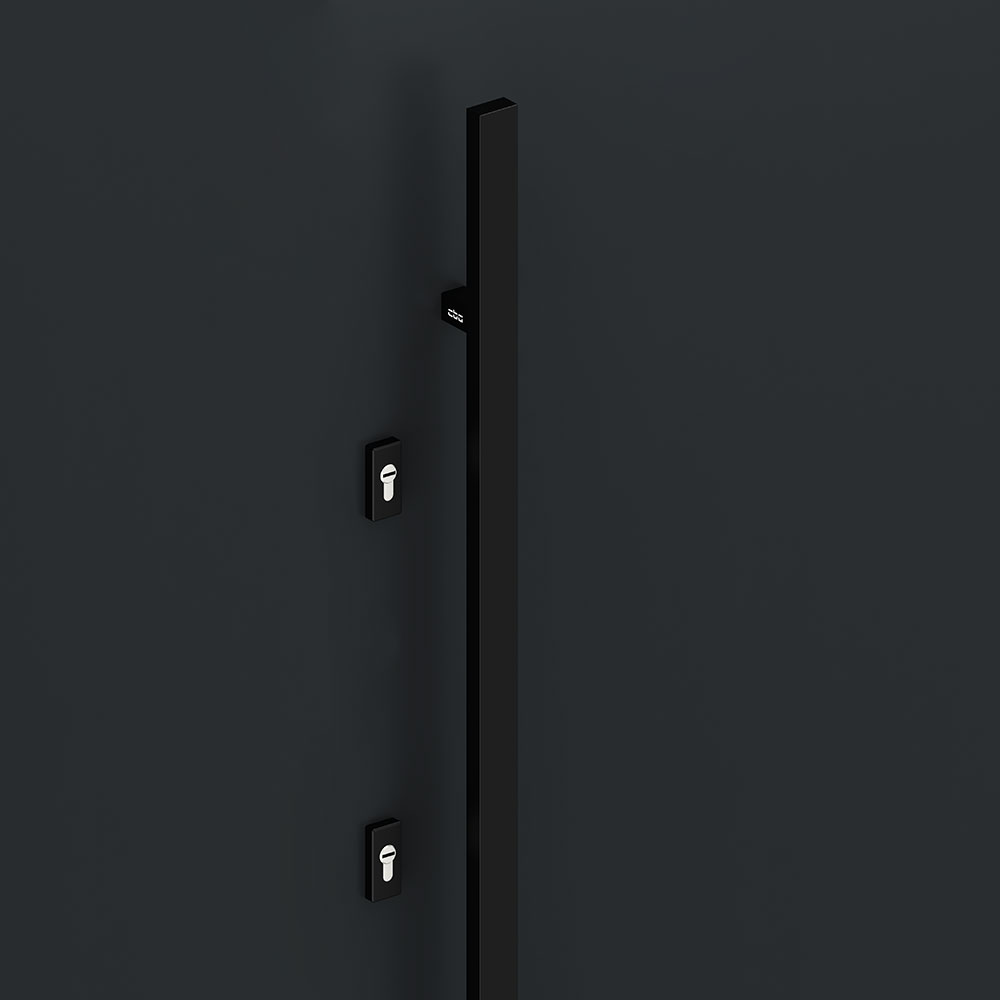

Stainless-steel "CBA" fittings
"CBA" is the result of many years of cooperation with international manufacturers of fittings. It was specially designed for installation outdoors. Uniquely-designed shape, burglary and corrosion resistance. Warranty: 5 years.
Stainless-steel "CBA" fittings
"CBA" is the result of many years of cooperation with international manufacturers of fittings. It was specially designed for installation outdoors. Uniquely-designed shape, burglary and corrosion resistance. Warranty: 5 years.

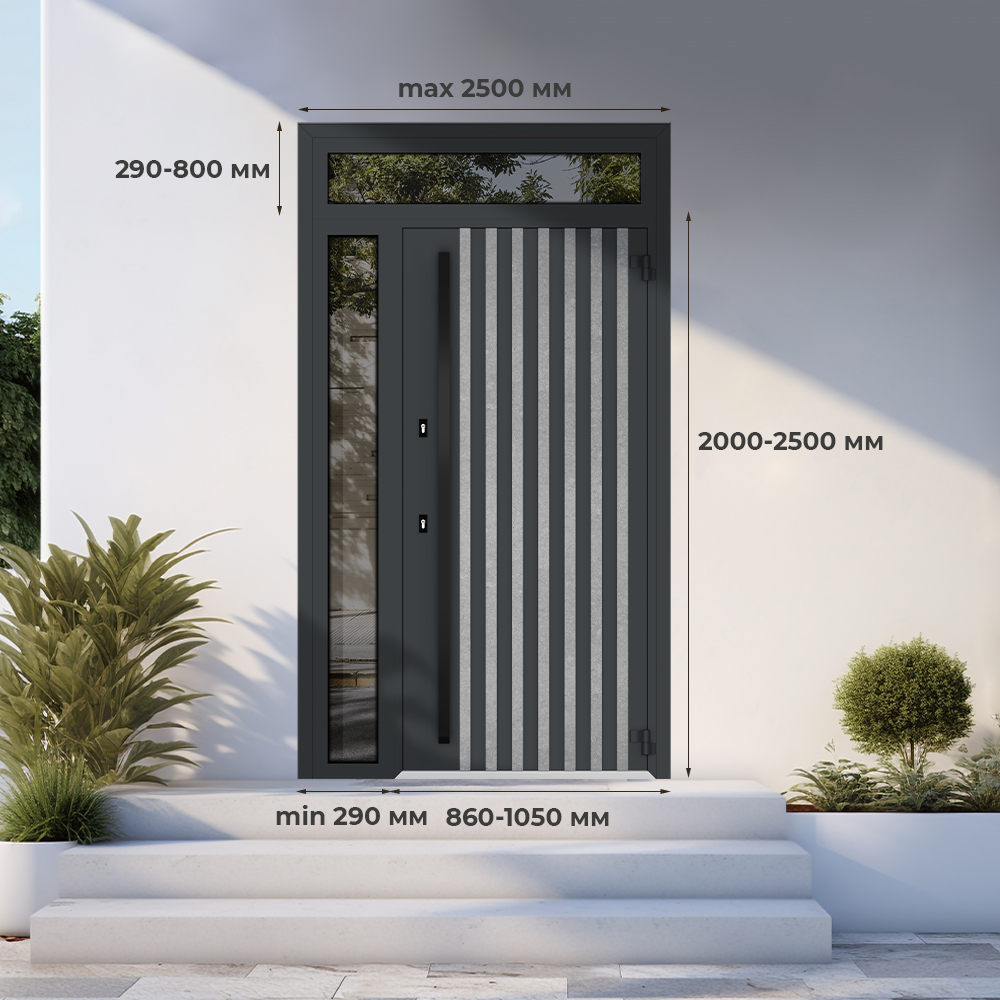

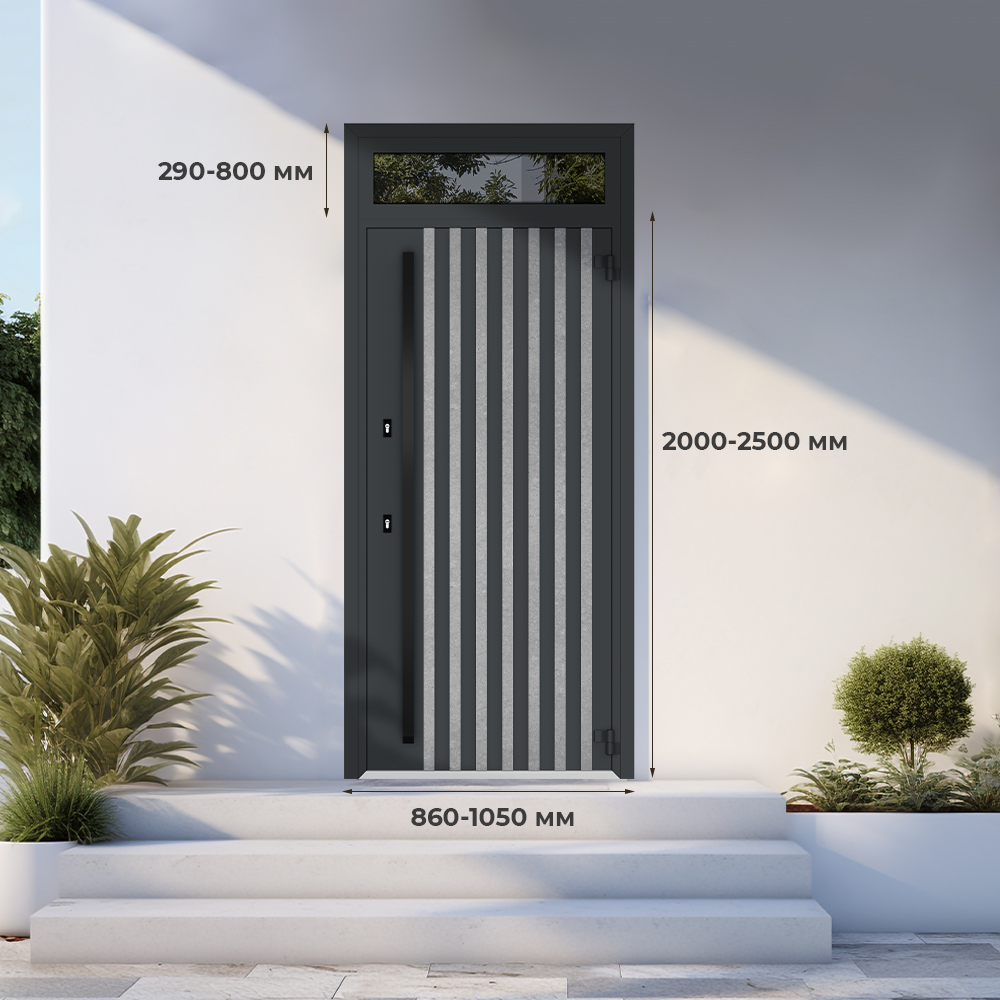

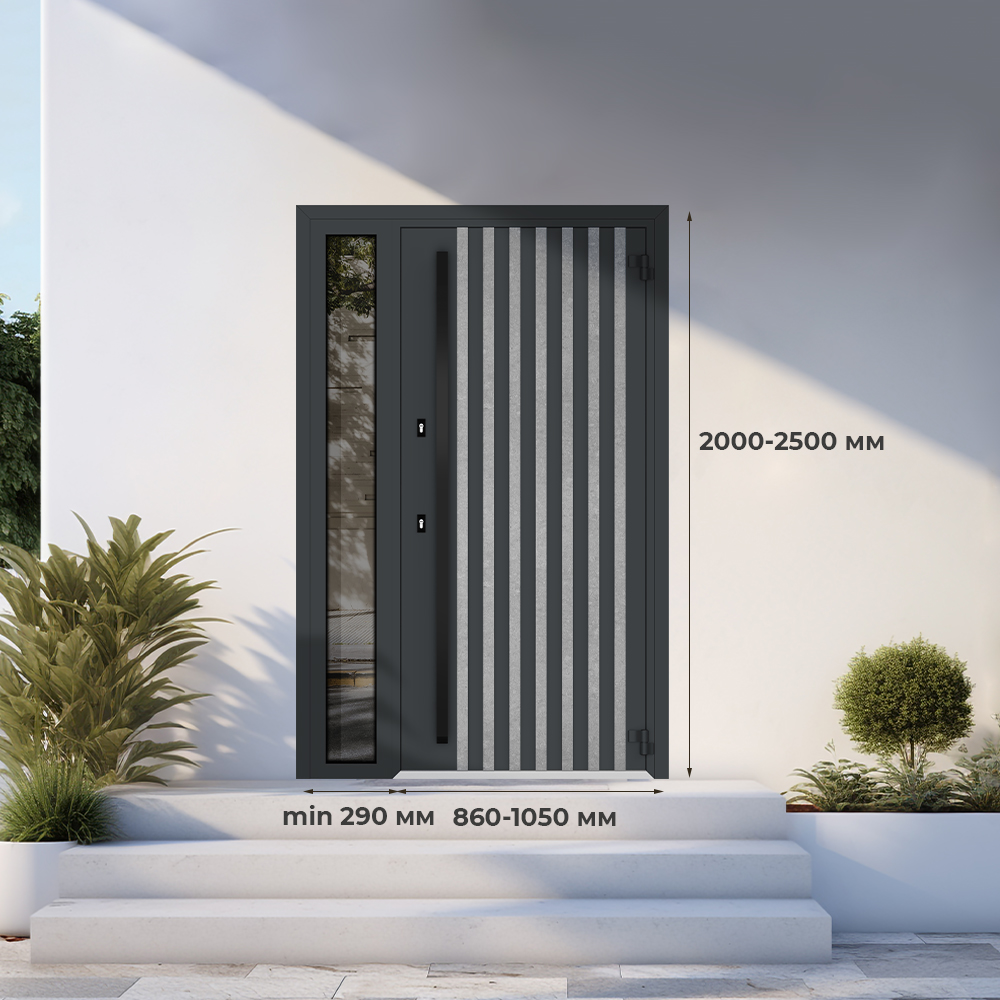

Single-leaf door
A single-leaf door can be used as a basic structure for panoramic glazing with double glazing triplex glass units (including those with inserted lattices). See below for mounting dimensions (step: 50 mm).
Single-leaf door
A single-leaf door can be used as a basic structure for panoramic glazing with double glazing triplex glass units (including those with inserted lattices). See below for mounting dimensions (step: 50 mm).

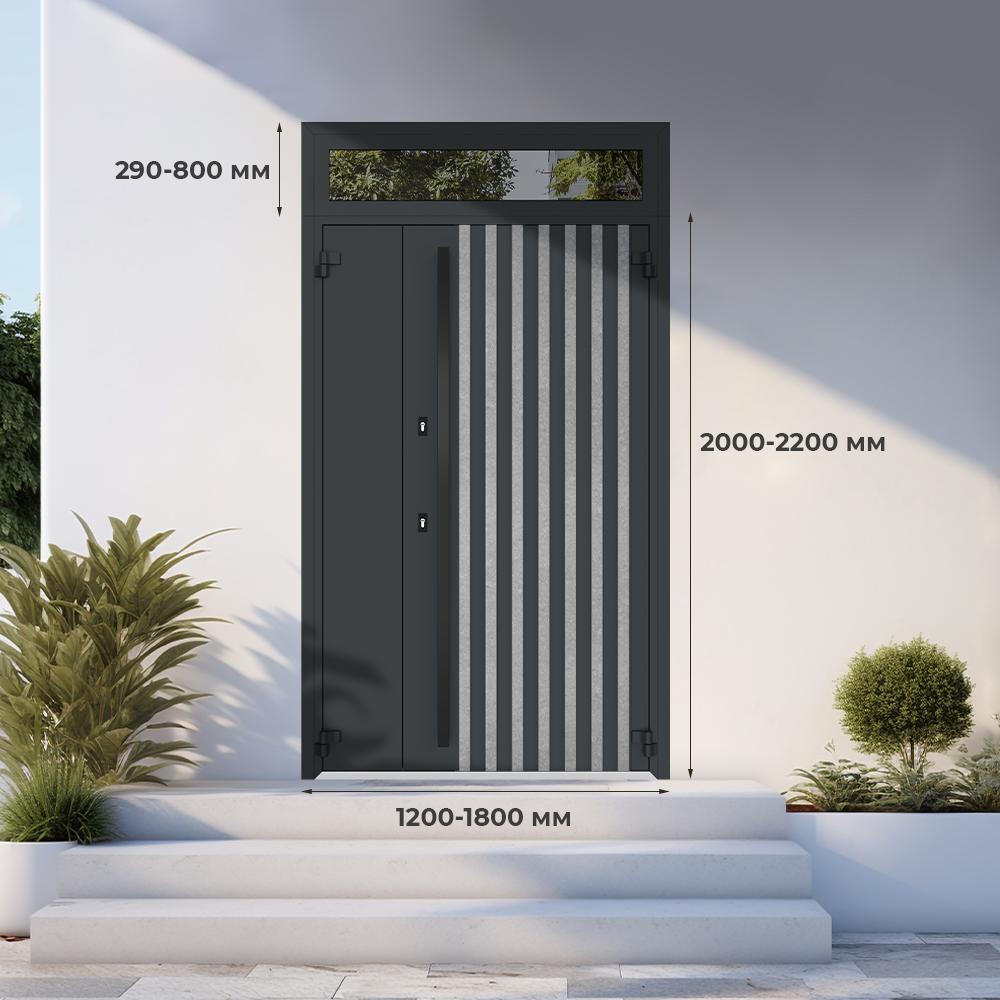

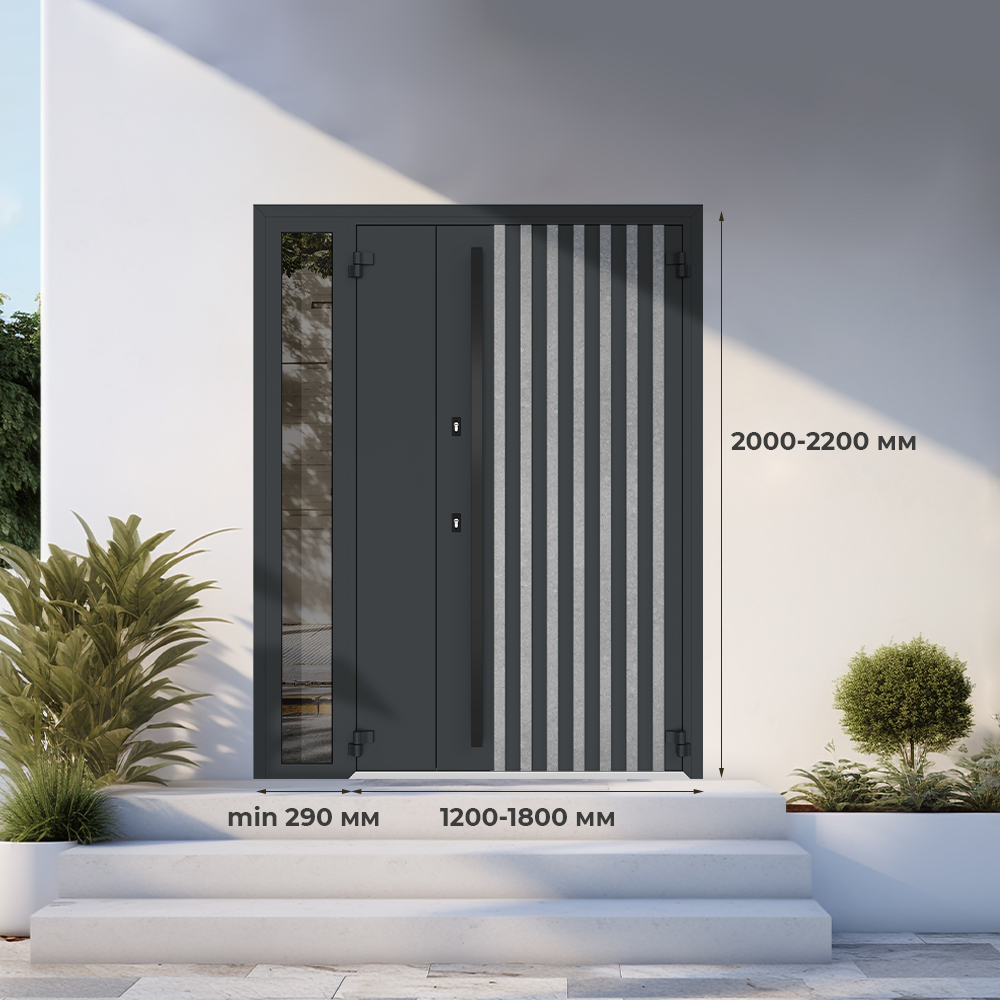

Asymmetric double-leaf door
A double-leaf asymmetric door with an active side leaf can be used as a basic structure for panoramic glazing with double glazing triplex glass units (including those with inserted lattices). See below for mounting dimensions (step: 50 mm).
Asymmetric double-leaf door
A double-leaf asymmetric door with an active side leaf can be used as a basic structure for panoramic glazing with double glazing triplex glass units (including those with inserted lattices). See below for mounting dimensions (step: 50 mm).
Outer finish: Decolux
The colour of bars is chosen in accordance with the Decolux palette. This is a bright and durable coating, with its texture looking like wood or stone, resistant against temperature fluctuations, moisture and UV radiation. The warranty period is 10 years. The Polimex palette may be used to choose colours for the door leaf and case.
Outer finish: Decolux
The colour of bars is chosen in accordance with the Decolux palette. This is a bright and durable coating, with its texture looking like wood or stone, resistant against temperature fluctuations, moisture and UV radiation. The warranty period is 10 years. The Polimex palette may be used to choose colours for the door leaf and case.
Inner finish: Polimex
The inner finish colour for the door case and door leaf is chosen in accordance with the Polimex palette.
Inner finish: Polimex
The inner finish colour for the door case and door leaf is chosen in accordance with the Polimex palette.
Triplex glass units advantages
The triplex technology is appropriate to make strong, safe and energy-absorbing glass units. Several layers of glass (4 mm thick) are assembled together by the special polymer film, keeping splinters and protecting against injuries.
Palette of colours
See below for triplex glass units colours available for panoramic glazing in this model.
Triplex glass units advantages
The triplex technology is appropriate to make strong, safe and energy-absorbing glass units. Several layers of glass (4 mm thick) are assembled together by the special polymer film, keeping splinters and protecting against injuries.
Palette of colours
See below for triplex IGU colours available for panoramic glazing in this model.
